Less fuel pump current = less heat = cooler fuel = more power

Supplying fuel to support 1500 hp and beyond requires two or more high flow fuel pumps, housed in one or more in-tank fuel modules. The drawback to this scenario is that two or more fuel pumps can generate quite a lot of fuel pump current meaning increased heat. This transfer of heat needs to go somewhere and therefore, heats the fuel in the tank.
This is generally not a concern, however if the vehicle is idling or being driven for long periods with a low level of fuel in the tank, the fuel may start to reach a point of losing its full energy potential or start vaporizing in the pumps or fuel lines. This can cause long cranking times and hard re-starts. In the worst cases, the fuel pumps will start to cavitate, lose pressure and not supply fuel as intended.

The KPM PWM controller is pre-programmed to monitor your vehicle fuel pressure across all engine loads which allows the controller to calculate the required level of electrical current to your fuel pumps. This, in turn, delivers the correct amount of fuel to your engine as required across all conditions.

Cooler fuel means increased performance

Vehicles Factory Fuel System Control Module (FSCM)
S550 Mustang GT 2018-2023

The Mustang factory fuel system runs one small amperage fuel pump (approx. 8-12 amps), therefore the OE FSCM Fuel Module Controller is designed to electronically control only one small amperage fuel pump and no more.

The KPM 1500 hp Fuel System runs two fuel pumps at approx. 16-18 amps each. This is a total of 36-38 amps. You can see that the factory FSCM cannot support the amperage of larger pumps.

The KPM PWM Fuel Module Controller is used as a stand-alone controller and by-passes the factory FSCM.

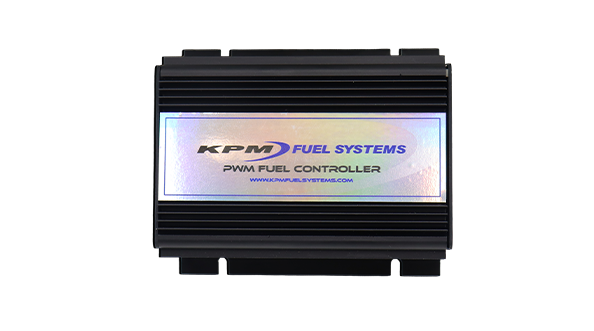

The KPM PWM Fuel Module Controller is supplied with a fuel pressure sensor kit and wiring that directly fits your vehicle’s fuel system. The fuel pressure is then used to calculate the correct current required to run the pumps accordingly.

Control of fuel pump current keeps your fuel cool and dense preventing vaporization, retaining its maximum energy potential for optimum power.

Advantages

• Cool, dense fuel
• Prevents atomization
• Full upgradable to run up to 4 pumps for future use
• Prevents long cranking times
• Maximum engine power potential
• Repeatable and predictable engine performance
• Ease of tuning
• Extended fuel pump and fuel system reliability
• Relieving the electrical system of excessive load
• Extended long idling and driving periods
• Provides maximum fuel system and engine reliability

Features

• Direct plug and play fitment when used with KPM 1500 hp and 2200 hp Fuel Modules
• Easy fitment with instructions provided
• Pre-programmed settings to suit supported vehicle make and model
• OE programmable when used on vehicles with a Factory Fuel System Control Module (FSCM)
• 2 driver outputs at 40 amps each
• Ability to run 1,2, 3, or 4 x high volume pumps
• 4-gauge outputs 0-5v able to monitor e.g.: fuel pressure, temperature, pulse width, amperage
• On-board temperature protection sensor
• Everything provided for a hassle free fitment

The KPM PWM Fuel Module Controller is a vital addition to all high performance, high demand Mustang fuel systems that require multiple pumps and/or fuel modules.

It will electronically control the fuel pumps to reliably supply correct amounts of cool dense fuel, only when and where required for engine demands.

It is fully modular when fitted to an existing KPM 1500 hp, KPM 2200 hp or KPM 2700 hp Fuel Module System

The KPM PWM Fuel Module Controller increases your power and engine reliability.

S550 Mustang GT 2018-2023: AUP-MUSPWM1500-18-LHD
