KPM 2700 HP ADD-ON FUEL AND PWM KIT (S550 and S650 MUSTANG GT and Darkhorse 2018->)
Original price was: $4,875.$4,388Current price is: $4,388.
Part No.:
S550 and S650 Mustang GT and Darkhorse (2018->): AUP-MUSPWM2700-18-LHD
*All guidelines for horsepower ratings are represented as horsepower at the crankshaft on gasoline. This is an industry standard measurement that removes drivetrain losses and other unknown implications that can lead to incorrect estimation of HP when measured at the wheels.
KPM 1500 HP FUEL MODULE UPGRADE TO KPM 2700 HP PWM AND FUEL SYSTEM
If you already have the KPM1500 hp Fuel Module and need ULTIMATE fuel supply then you need the KPM 2700 hp ADD-ON PWM and Fuel Kit.
KPM Fuel Systems have engineered this upgrade package to be fully modular and an easy direct fit addition to your existing KPM 1500 hp Fuel Module and wiring setup.
This upgrade will be brought to the same level of components and operation as listed in our KPM 2700HP Fuel and PWM System Part# KPMMUS2700PWM-18-LHD
For full product details, features and benefits see the above link.
Get track ready.
Eliminate fuel surge at the race track once and for all.
A key advantage of the KPM Fuel Systems fuel pump module and PWM kits are the ability to keep the canister full at all times.
This means when you are at the race track and pulling some G’s on cornering there wont be any surging happening inside the tank. Fuel surge is caused by the fuel pump canister being at a low level due to the lower flow rate of the factory pumps and ineffective siphon designs. Surging is undesirable as it results in slower times, unpredictability and possible engine failure.
KPM Fuel Systems advanced venturi technology.
So how do we do it? Having the perfect balance of high flow rate fuel pumps and venturis in each and every module means that the canister is always being filled up by a siphoning effect without sacrificing the total output of the fuel pumps.
Even when the car is on heavy cornering and on lower fuel levels it takes minimal effort for fuel to be siphoned back into the canister from each side of the tank and keeping the pumps submerged and operating flawlessly.

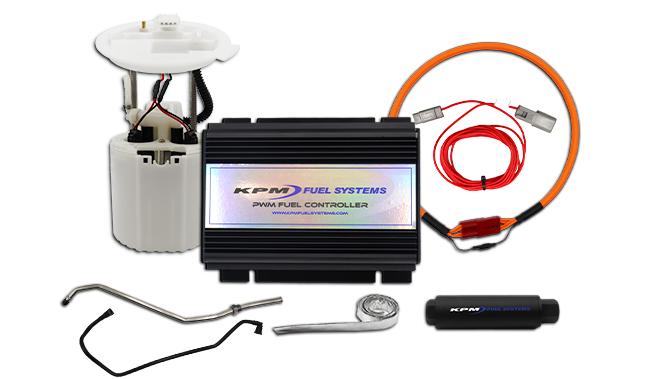

Included in the Upgrade
S550 and S650 Mustang GT and Darkhorse (2018->): AUP-MUSPWM2700-18-LHD
- KPM 1500 hp in-tank fuel module x2 Bosch Racing Fuel Pumps (secondary)
- KPM PWM Fuel Module Controller
- KPM Fuel Line and KPM 2700 Fuel Filter Upgrade
- Easy fit high amperage wiring and connector kit
- Fitting and calibration instruction included
Instructions
Stuck with your installation?
Find all of our fitting instructions here
